QT5-15Automatic Brick moulding machinery

FOB Reference Price:Get Latest Price
  • >=1 Sets
    US $35000.00
Report Suspicious Activity
Overview
Quick Details
Condition:
New
Type:
Hollow Block Making Machine
Brick Raw Material:
Concrete
Processing:
Brick Molding Machine
Method:
hydraulic pressure and vibration
Automatic:
Yes
Capacity:
4000-60000 Pieces/day
Place of Origin:
Shandong, China (Mainland)
Brand Name:
Huatong
Model Number:
QT5-15
Voltage:
380V
Power:
35.7kw
Dimension(L*W*H):
3000x1900x2930mm
Certification:
ISO9001
Warranty:
1 Year
After-sales Service Provided:
Engineers available to service machinery overseas
Pallet size:
1100x700
HS Code:
8474809090
Supply Ability
Supply Ability:
60 Set/Sets per Month
Packaging & Delivery
Packaging Details
Full Container Loading
Port
Qingdao Port
Lead Time :
10-25days
Video Description

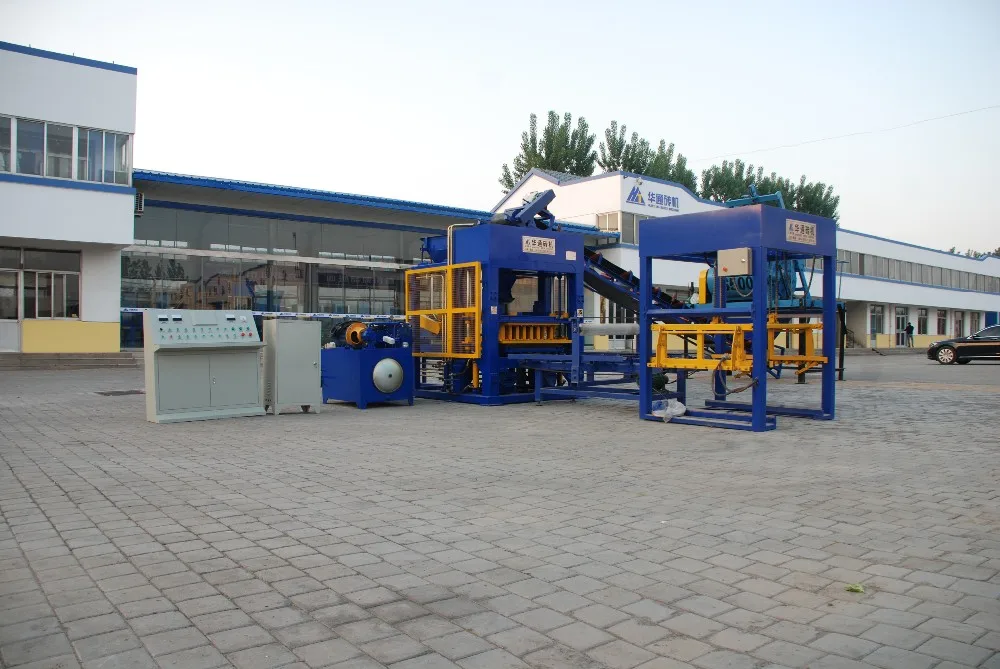

Picture of QT5-15Automatic  Brick moulding machinery






Technical Parameter

Dimension

3000x1900x2930mm

Weight

10T

Pallet Size

1100 x700mm

Power

29.7KW

Mode of Vibration

Table Vibration

Vibration Frequency

4200r/min

Vibration Force

70KN

Cycle Time

15-25sec



Production Capacity



Block Type

Size(L x W x H)

Pcs./Pallet

Pcs./Hour

Pcs./8 Hours

Hollow Block

390x190x190mm

5

780

6240

Hollow Block

390X150X190mm

6

1250

10000

Hourdi Block

530x160x195mm

6

940

7520

Stock Brick

220x110x70mm

24

5400

43200

 Paving     Block

200x100x60mm

22

3160

28280

Paving Block

225x112.5x60mm

20

2880

23040



Features

1.The Machine adopts four galvanized pipe with sleeve bearing to ensure the exact movement of mould.Concrete feeder adopts Orienting Way Operation that will decrease the friction with mould and realize perfect concrete feeding.



2.The Vibration System adopts German Frequency Conversion Technique.The vibration motor is Frequency Conversion Controlled.The lubrication of Vibrator adopts oil immersed,which improve the using life of Bearing and Gear of vibrator.



3.Moulding is by table vibration and hydraulic pressure.Wet blocks made by our machine has good density.Solid blocks can be taken off pallet and save pallet cost.



4.The Mould is made with heat treatments of quenching,tempering,carbonization and boriding.Working life of mould is improved.



5.The Electric Control System adopts Siemens PLC,Schneider Contactor ,Omron proximity sensors.

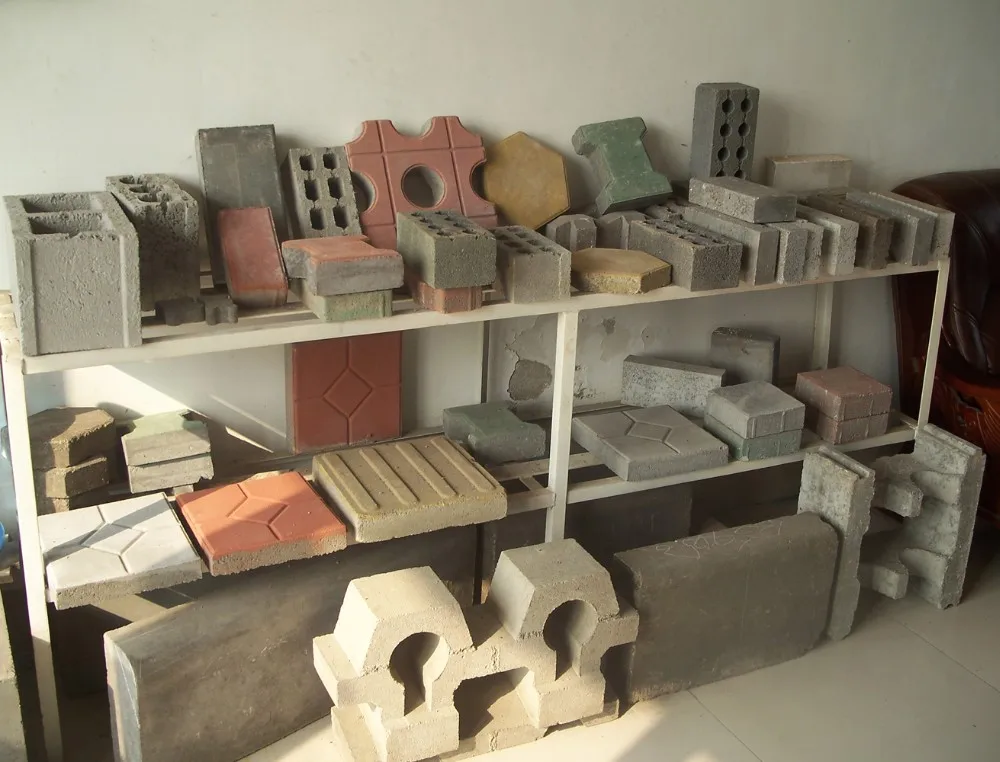

Block Samples:




Company Introduction:



psb (3).jpg





 Shandong Gaotang Huatong Hydraulic Pressure Machinery Co.,Ltd hereafter refered to as Huatong is located at Renhe Industrial Zone,Gaotang City,Shandong province,China. Huatong is professional manufacturer of Tower Crane, Concrete Block Machine,AAC Block Making Machine,Ready Concrete Mixing Plant,Concrete Pipe Making Machine.


Huatong was started in 2004.After 11 years development,Huatong is becoming from small to large.Huatong covers an area of 65000 square meters including 19000square meters construction area with modern workshop and facilities like machine tools,heat treatment machines,shot blasting machine,welding machine.Huatong owns about 600 skilled workers including high skilled engineers,after-sales technicians and quality inspecting technicians.


Huatong has been in good cooperation with China Equipment and Technology department.By adopting new techniques,we have been devoted our self to new building materials research and recycle of industrial and building waste and have R&D Department for research and development. Huatong achieved ISO identification and now ISO9001:2008 Quality Management System is completely implemented in our production work.Huatong has many hours like Shandong Famous Brand,LiaoCheng High and New Tech Enterprise and National Qualified Block Machine Manufacturer.Huatong owns 10 Utility Model Patents and 6 Invention Patents identified by State Intellectual Property Office Of China.

Relying on excellent detection means,advanced equipment,perfect machine quality and management philosophy of pursuit of excellence and sincere service,Huatong obtained customer high praise.Together with Huatong Together with Success.
